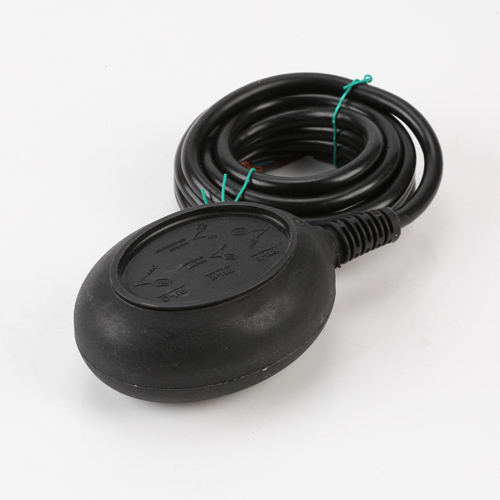

Cable Float Switch mainly used together with the water pump to control the water level or the other liquid level.
Features:
Simple construction,reliable performance
The product can output stable and reliable switch control signal of"making","breaking"without any fault action,so its reliability is
very high and antiinterference is strong.
Sturdy and durable,need not maintain
The product can be used for a long time after it being installed,Almost no maintenance and repairing problem would occur
during its operation period.
Easy installation method,convenient adjustment method
The liquid level control scope can be adjusted at willwith the locating piece moving up and down.Only one screw is needed to
secure the signal cable to finish installation.
Wide application scope,strong generality
The product applies to branch water,sewage,acid-base solution of less than medium concentration.oils and situations
requiring no pollution(for example food and drinks industry), diesel oil gasification kitchen range,and automatic fuel feeding
Simple circuit.economial and practical
Operation voltage is 250V(380V)/120V,and current can be up to 16A(8A),10A(8)A,10(4)A,The applied circuit of the product
is simple,so application cost is very low.
Specification:
Model: NK-001
Float Material: PP
Cable Material:PVC/ RUBBER Cable
Wire: Three wire
Wire Standard: 3*0.75 smm.
Rated voltage:250V (380V)
Rated current:16A (8A)
Working temperature:0℃＜water temperature≤80℃
Mechanical endurance:≥10,000times
Electrical endurance:≥50,000times
Protection Grade:IP68
